Find Your Wiring Diagram

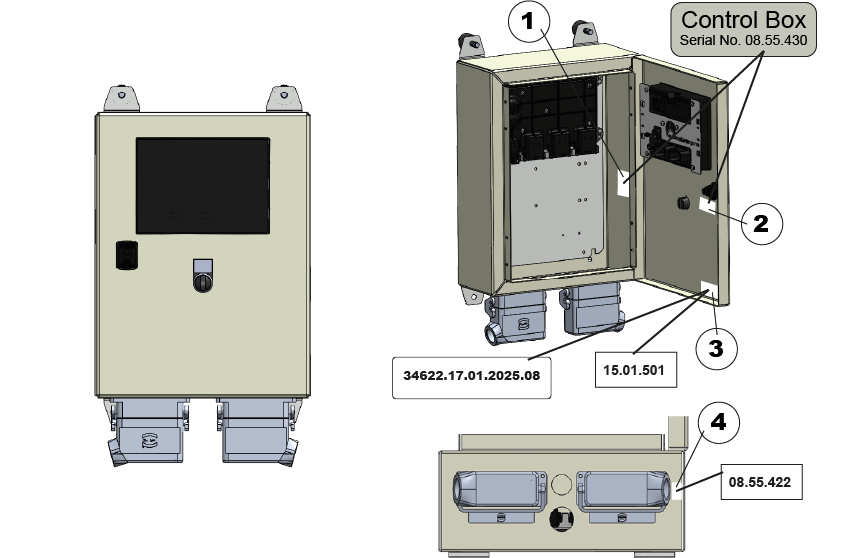

To access the wiring diagram for your pump, first locate the serial number. Depending on the production year and model, the serial number can be found in one ofthe following four locations (see illustration):
-
1.) On the inside of the box
-
2.) Underneath the door lock (inside the control box door)
-
3.) In the lower corner (inside the control box door)
-
4.) On the underside of the box

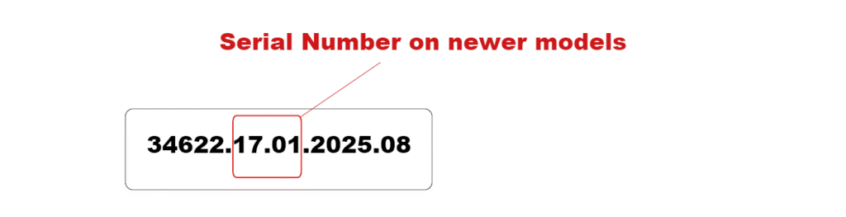

Once you’ve found the serial number, enter the first four red-highlighted digits with a dot in the middle (xx.xx) into the search bar.
Can’t find the serial number? No problem — you can also search by pump model name
